Industrial Design Solutions
- Industries using NX CAD
- NX industrial design solution provides fast concept designs and styling to accelerate your product engineering. You can create a real-time rendering of your products, allowing you to visualise the end product and make changes before manufacturing.
- NX industrial design solutions allow you to use any modelling approach that fits your design challenge. It provides robust and versatile 2D and 3D CAD modelling tools to help you bring innovative products to market faster.
- From concept to manufacturing, choose from a large set of freeform design tools useful in all product development disciplines and processes.
- Here are some of the key features and capabilities of Industrial Design

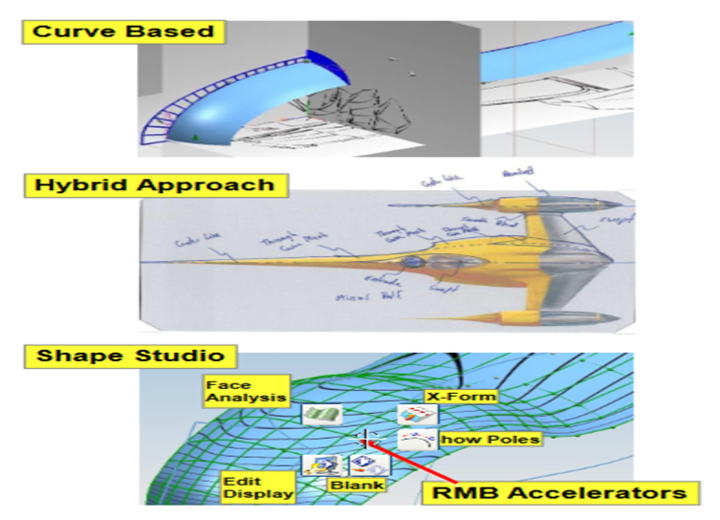

Freeform and Class-A Surfacing
Freeform Surface Design: Tools for designing freeform surfaces essential for complex and organic shapes.
Class-A Surfacing: High-precision tools for creating Class-A surfaces that meet strict aesthetic and functional criteria, particularly in the automotive and aerospace industries.

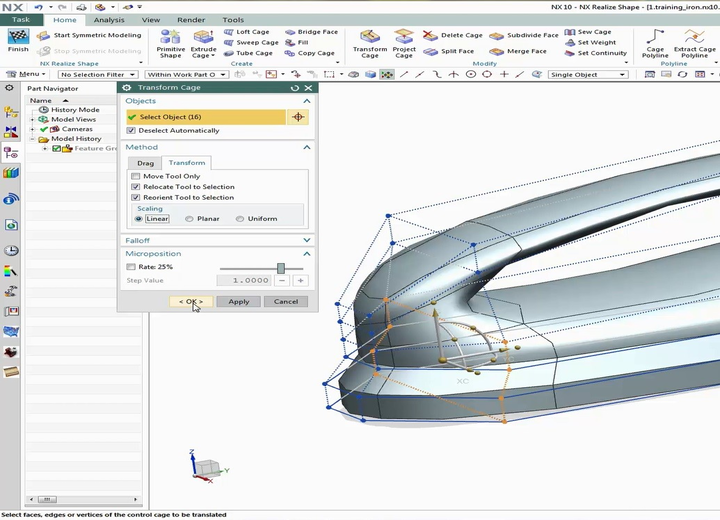

Subdivision Modeling
Subdivision Modeling is beneficial in the early stages of design. It enables the creation of smooth, organic shapes using a subdivision surface approach.

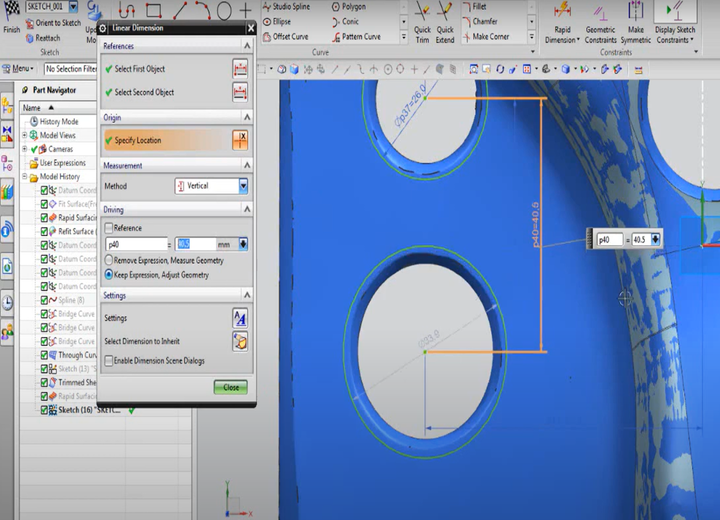

Reverse Engineering
You can efficiently reverse engineer a product design using a 3D scan. By importing scanned data as facets without the need to map surfaces, create solids, or manually shape the data. It becomes easier to build supports for 3D printing, create molds based on the shape, and perform various operations with CAD data.

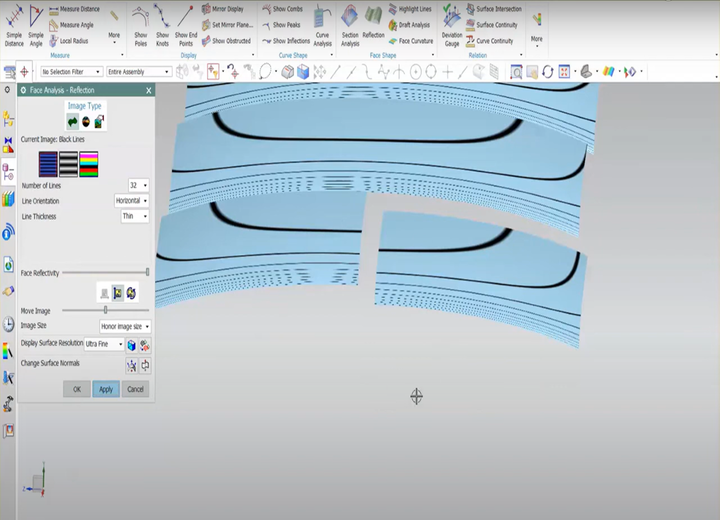

Advance shape analysis
NX supports real-time analysis functions and graphical displays to measure complex shapes for analytical and visual quality. It lets you quickly identify design errors and improve shape quality, resulting in more accurate and efficient designs.
